Scientific image processing prototype

Immunoblot strip analysis

Detect C1 / reference anchors, measure corrected band intensity at every expected 3 mm position, and export Excel results with a demo Positive / Negative / Undetermined interpretation.

How to use this portal

  1. Get a strip image. Download the bundled sample pair below, or use your own PNG / JPEG / TIFF of one or more vertical immunoblot strips.
  2. Choose a run mode. Click Run analysis on sample to process the bundled image immediately — no download or upload required. Or upload an image and click Analyze upload.
  3. Review the preview. The portal shows the annotated strip image, per-strip interpretation, and a color-coded table of all 34 expected band positions.
  4. Export results. Download the Excel workbook, annotated PNG, CSV, or JSON.

1. Sample image

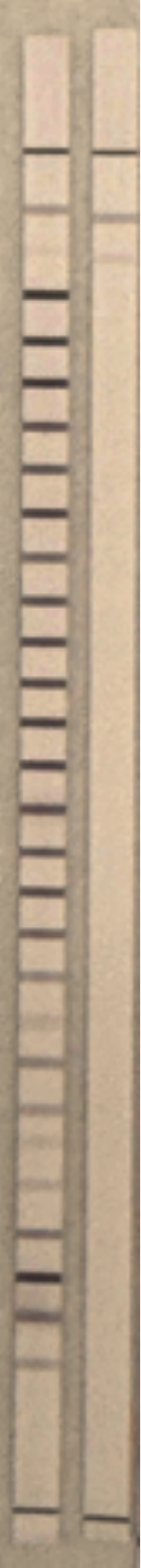

Two-strip photograph from the original job brief: left strip is the Positive example, right strip is the Negative example. Sample lanes used by the demo are 20:65 and 88:134.

Sample immunoblot pair with a positive strip on the left and a negative strip on the right Download sample image

2. Run computer vision

Use the one-click button to analyze the bundled sample without downloading or uploading it again. Use the upload form to process your own scan.

No download or upload needed. Uses the bundled sample and known strip lanes.
